Specification –Twin Pod Filter Cartridge

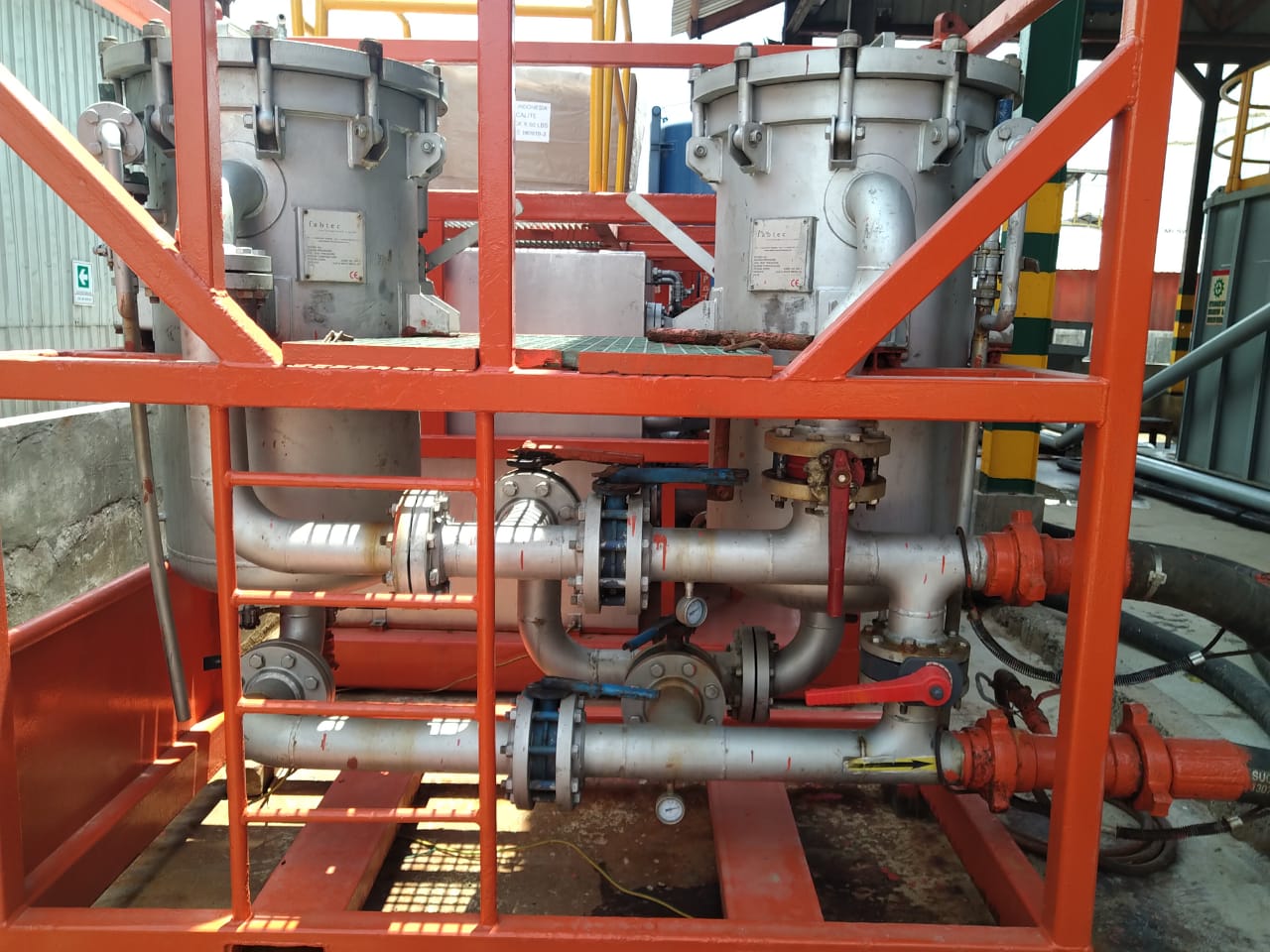

The Parker Twin Filter Dual Vessel Cartridge Filter Unit is the most commonly used cartridge filter unit in the oilfield industry. This offshore proof, skid mounted filter unit offers a cost effective way to clean most common oilfield fluids and fluid-waste streams. The TDW is equipped with all necessary valves and safety features. The unit enables simutaneous filtration with one vessel, while the spent cartridges of the other vessel are changed out. Certified hoisting slings and forklift pockets enable the equipment to be lifted quickly and easily with minimum risk at damaging.

Benefits / Features

  • 50 cartridges par Vessel
  • Serial/Parallel/Bypass
  • Designed signed for offshore duty
  • Offshore frame built according DNV 2.7-1/EN12079
  • Safety valvo sat at 7 bar (101.5 psi)
  • Connections SS316L. unions fig. 100 fitted with o-ring for aasy and 100% leak-proof saaling
  • Swing-bolts and aya nuts for quick opening
  • Easy to oporate lover and swing-away vesnail lid
  • Frama: 2 layer powder coated (Any RAL colour on requesit)
  • Stainless steal glass bead blastad
  • Integrated safety railing, ladder and service platform
  • Cortified hoisting slings lifting lugs and forklift pockets

Applications

  • Completion fluids
  • Produced water
  • Work over fluids
  • Gravel pack fluids
  • Waste water
  • (Bio) dianal Surface water intake
  • Process water
  • Profiltation RO
  • Frac fluids
  • Pipalino flushing

Options

  • Other vessel diameters (510/710)
  • Integrated C-pump
  • Low temperature execution
  • Flanged connections
  • High pressure (10 bar)
  • High Flow 0" piping
  • ASME VIII design

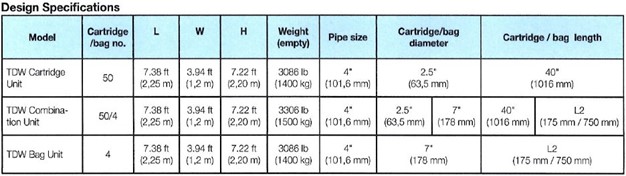

Design Specifications

Company Experience Table
