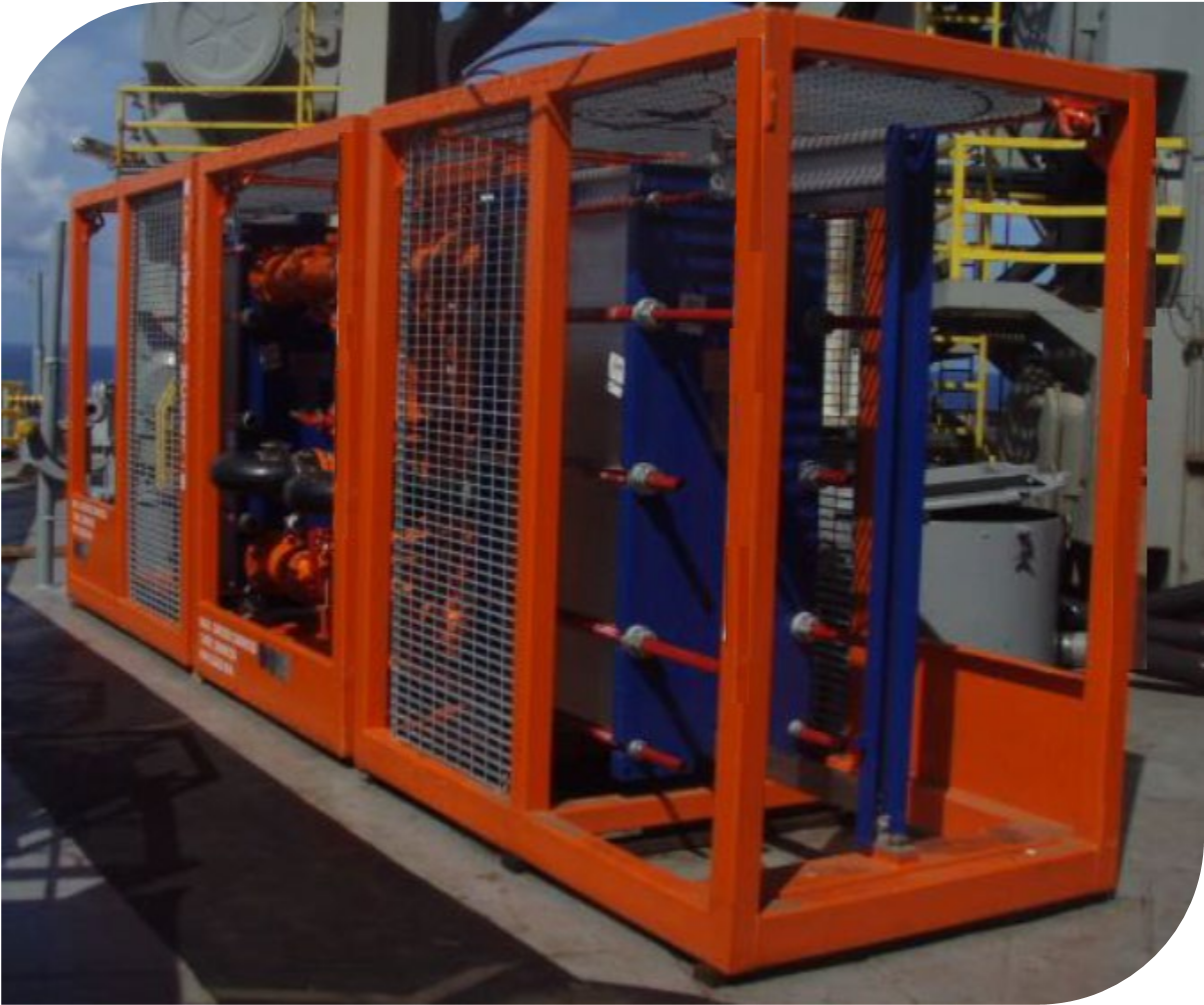

Dimensions PUMA Skid

L6,870 mm x 1,500 mm x 2.500 mm Weight 8,500 Kg

Dimensions Filter Skid:

L1460 mm x W 1050 mm x H1264 mm Weight 850 Kg

Design

Design Pressure 10 bar

Design temperature 110 0C

Pressure vessel code PED

Frame DNV 2.7-1

Materials

Piping mild steel schedule 80

Frame mild steel

Frame plates mild steel

Channel plates Titanium

Connections

Cooling water outlet 6” Ansi 150LB

Cooling water Inlet 6” Ansi 150LB

Drilling fluid inlet 6” Ansi 150LB

Drilling fluid outlet 6” Ansi 150LB

Utilities

Cooling water flow 275 m/hr

Drilling fluid flow 275 m/hr

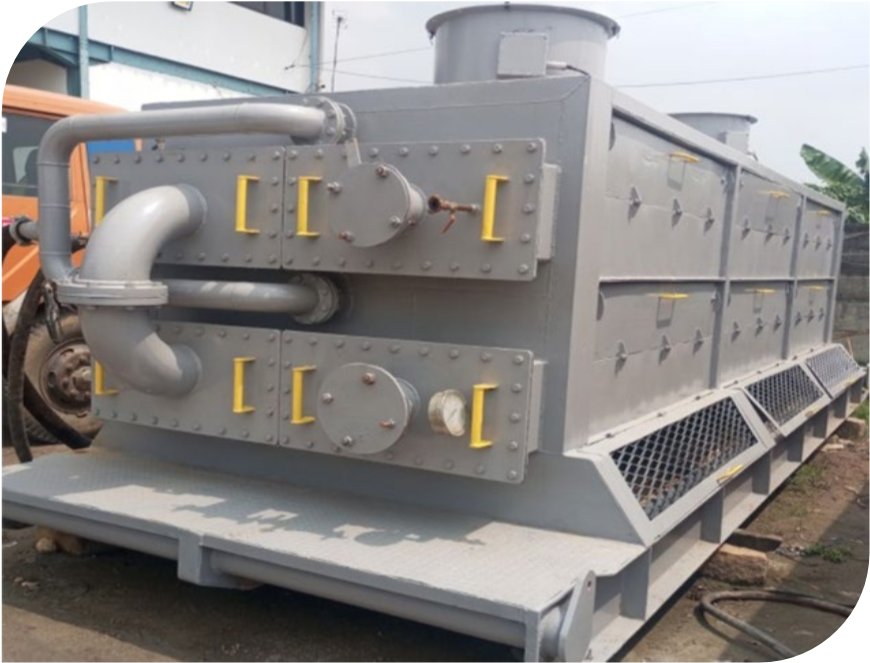

Water Cooling System

Brand : MCM-USA

Type : Direct Drive Axial Flow

Inlet : 3 inch Diameter

Outlet : 4 inch Diameter

Impeller : 13 inch Diameter

Flow Capacity : - 700 gpm

Electric Motor : Explosion Proof, 30 Hp (EExdIIBT4), 1750 rpm, 460 Volts, 60 Hertz

Mounted onto common base frame c/w Flexible Coupling & OSHA Guard

Water Line : 4 x 2 lines, Seamless Carbon Steel Pipe Sch 40 (0.237)

Line Water Sprinkler : 1 inch Diameter Seamless Carbon Steel Pipe Sch 40 (0.237)

No. of Sprinklers : 80 points with 1 inch Nozzle Sprinkles - removable for cleaning

Water Supply Pump

Pump Type : 2 Submersible Pump Model ECP 150-2H

Flow Cap : 10 m3/n

Head : 18 meter (Vertikal) or 450 meter(Horizontal)

Dia. Discharge : 50mm

Connection : 2 Weco type fig 100

Power : 1.5 Kw(2 HP), 380 Volt -50 hz, 3 Phase, 2900 Rpm
